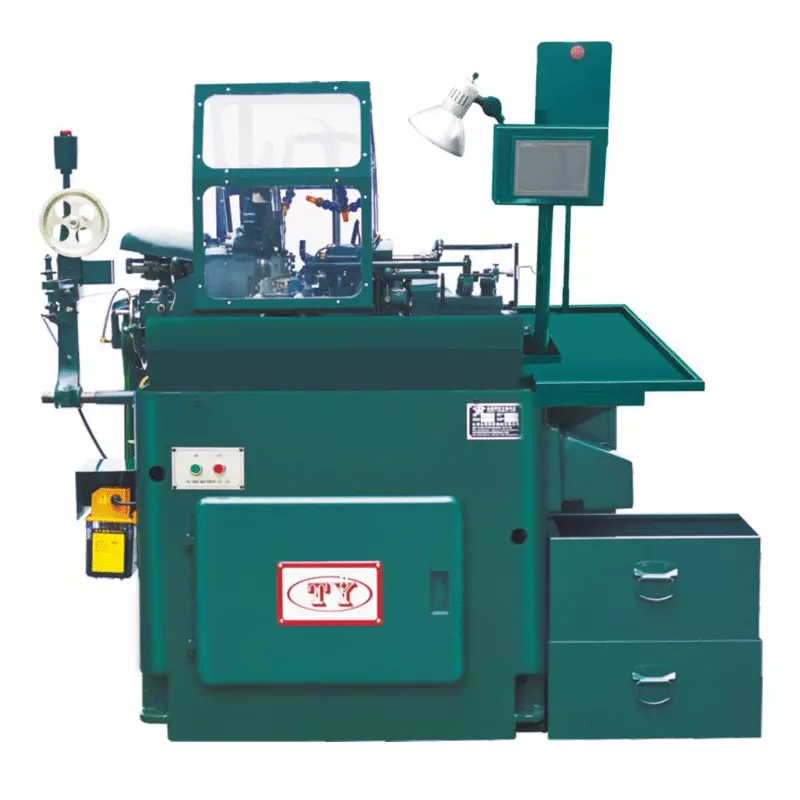

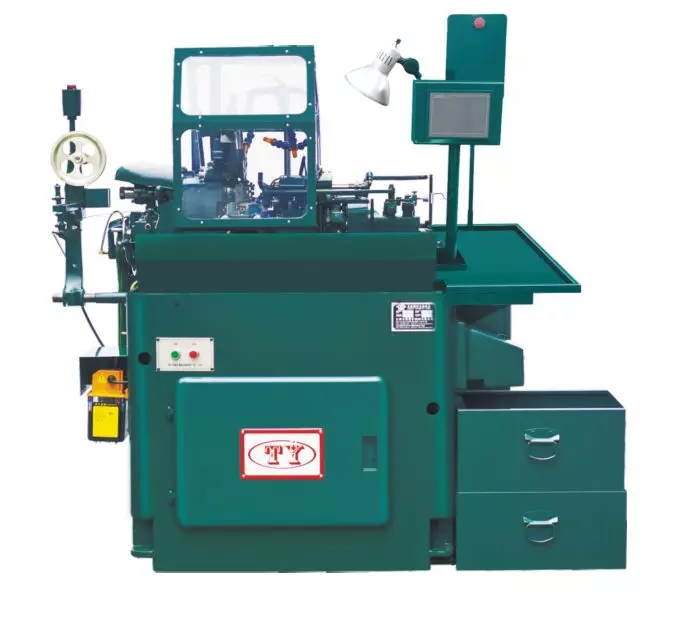

Automtic lathe A-1525
Brand: Taiyang
MOQ: 10 Pieces
Delivery time: 7 Day
1.The spindle assembly is imported from Taiwan and uses P4grade ultra precision rollersBall bearings ensure the accuracy ofthe machine;

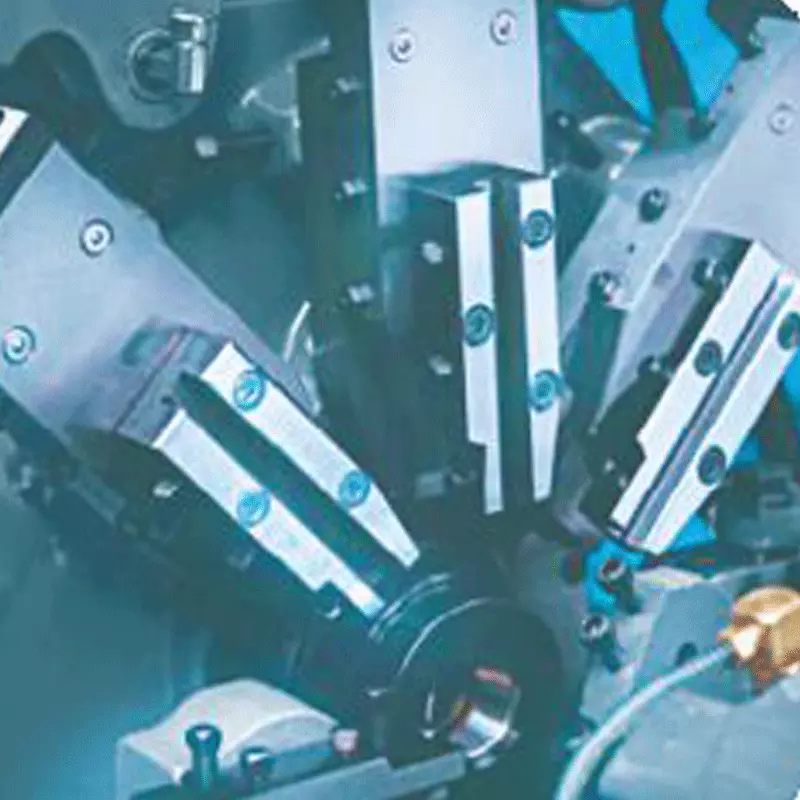

2.All knife holders are imported from Taiwan and have adoptedthe latest adjustmentsDesign has improved the accuracy of theproduct;

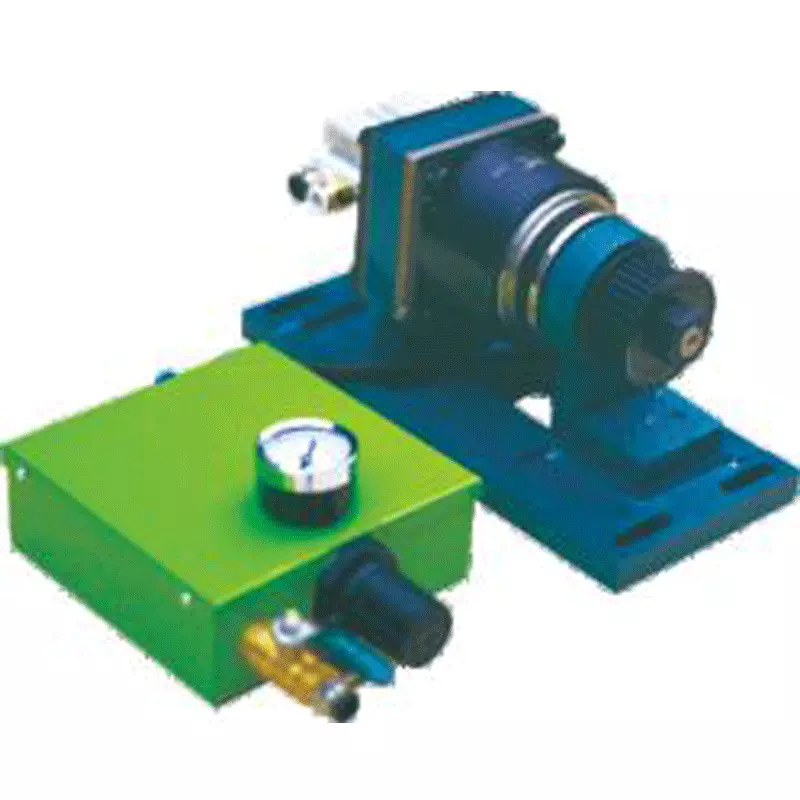

3,lt can use a servo tapping machine, suitable for mobile phonenuts,and can also tapM8/M 10 tooth spacing;
4.The standard tooth tapping machine adopts the topelectromagnetic clutch supplier in the industry from JapanTheclutch coil assembly of Shengang ensures the precision andservice life of the tapping teeth;
5.Use NSK original bearings from Japan to ensure precisetransmission of power to various operating components.
product details
Technical Parameters
| Specification/macchine type | A -1525 |
| Spindle speed | 2000-7000rpm |
| Cam haft speed | 1.2-38rpm |
| Number of speed | 2 |
| Number of tool | 5 |
| Control of main shart speed | 5 steps |
| Control of Cam shart speed | 15 steps |
| Max.length of processing | 35mm |
| Max,diameter of processing | 15mm Ф |
| Max,diameter of drilling | 10mm Ф |
| Max.diameter of drilling | 30mm |
| Max.diameter of tapping | Cu brass M10xP1.25 Fe iron M8xP1.0 |
| Max motor | 2HP(1.5kw) |
| Coolant oil pump motor | 1/4HP |
| Oil tank | 40L |
| Heing from floor to spindle center | 1085mm |
| Lathe dimensions | L1500xW600xH1600mm |
| Weight | 690KG |
| Measurement | L1700xW750xH1600mm |
Stand accessories
| Cam | 3(set) | Cutting Cooling Device | 1(set) |
| Tools box | 1(pc) | Adjust tools | 1(set) |
| Feeding surpport | 1(set) | Oil splash-prevention | 1(set) |
| Tapping jackct | 2(pc)20Ф.25Ф | Machine oil basin | 1(set) |
Stand accessories
| Taiwan Original | Thread milling device | Threading attachment | 1(set) |
| Taiwan Original | Noise-reducing feed tube | Sougd-Proof Feeding pipe | 1(set) |

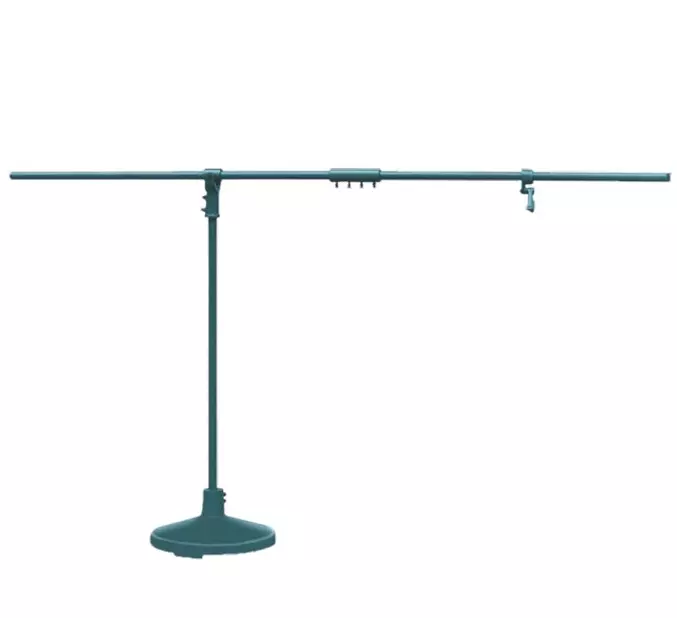

Standard matching oflathe manual feeding
1.Economic supporting equipment and easy operation.
2. Feeding rack can be extended for processing super-long materials.
3. lt can be equipped with 1525 or 2025 feeding pipes according tocustomers'requirements.
4.Special custom muffler tube.
