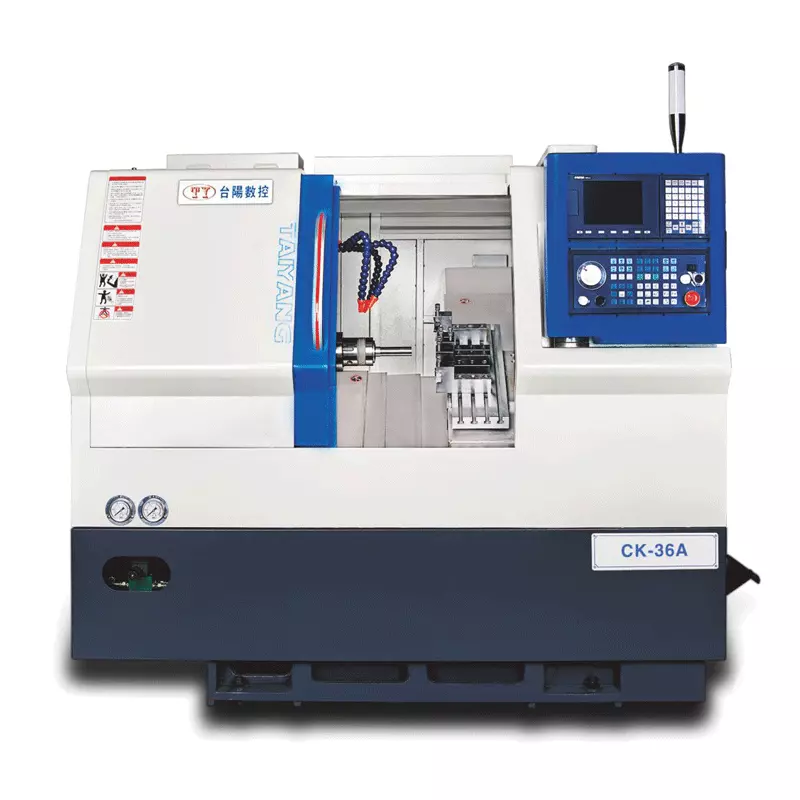

Knife arrangement machine CK-36A

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

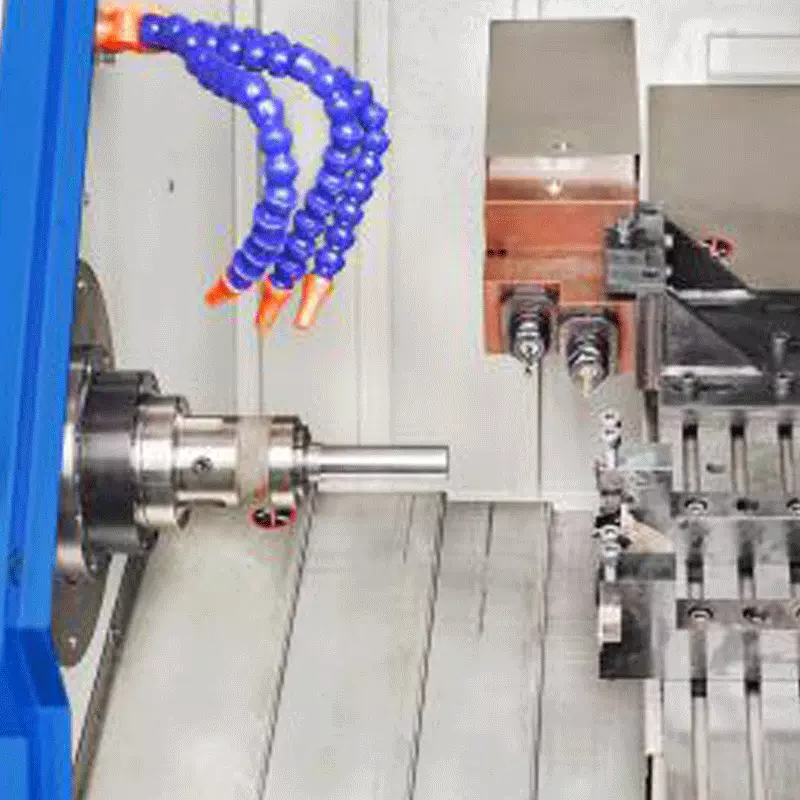

1.The overall casting process,45-degree inclined bed design, easyoperation and smooth chip removal;

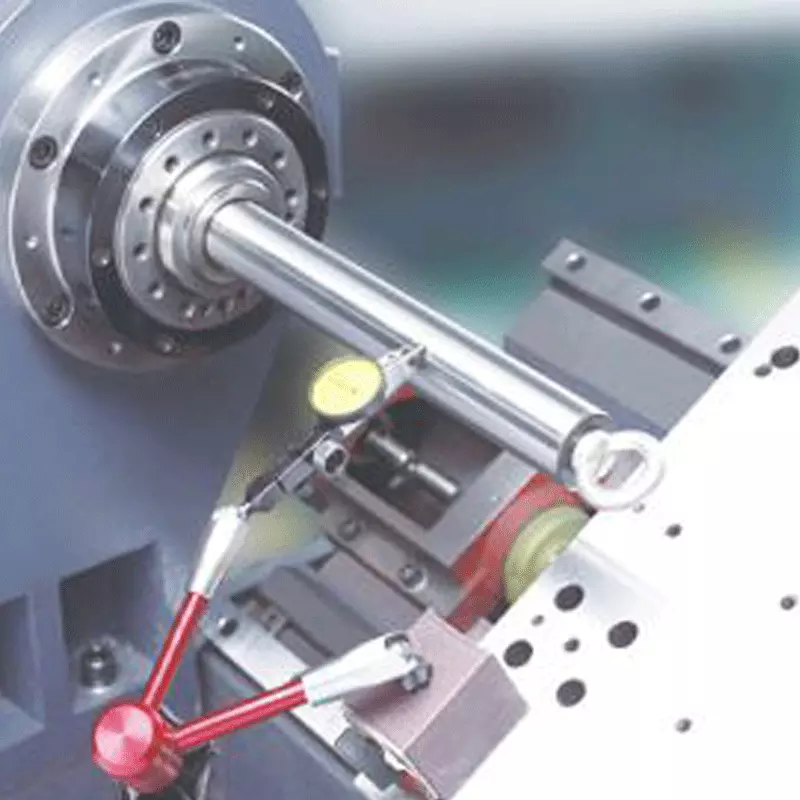

2.Adopt large-diameter C3 grade ball screw, double pre-pulling design,small change of hot and cold machine;

3. The water tank is built-in, the water storage capacity is large, the bodyis stable, and it is convenient to install a high-pressure pump;

4.Grinding grade screw with large pitch, strong rigidity and fasterrunning speed;

5. High-power cooling water pump, sufficient cooling, longer tool life;

Previous: Knife arrangement machine CK-25A

Next: Knife arrangement machine CK-52A

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Knife arrangement machine

Turning and milling compound machine

Knife tower machine

Dual spindle and dual blade tower turning and milling composite machine

Knifetower tail top machine

Automtic lathe

Main accessories of automatic lathe

Latest News

Advantages of Turning and Milling Composite Machines in the Processing of Complex Parts

Applications of High-Precision CNC Lathes in the Aerospace Industry

How to optimize the production efficiency and processing accuracy of automatic lathes

How turning and milling composite machines adapt to small-batch, multi-variety production demands

Breakthroughs and applications of high-precision CNC lathes in micro-nano processing

Contact Us

Phone:

+86 13537157072

E-mail:

sunny@yuyangmachine.com

Whatsapp:

+86 15814115868

Address:

No.4, Lane 1, Hebin Road, Yongkou, Houjie Town,Dongguan City, Guangdong Province

Website:

ltem	Standard configuration/Optional configuration
System	Taiwan New Era
Drive	Japan Yaskawa/Taiwan New Era
Spindle	Taiwan Pusen/Jiantong
Screw rod	Taiwan Yintai/Shangyin
Guide/ sliding block	Taiwan Yintai/Shangyin
Bearing	Japan NSK/NACHI
Electical appliance	France Schneider
Spindle motor	Super Synchronous

ltem	CK-36A		Unit
Special cases	Name	Specifications
Machining range	Machine tool body Rotation diameter	Ф500	mm
	Workpiece length	300	mm
	Machining diameter (discs)	Ф400	mm
	Machining Diameter (Shaft)	Ф36	mm
	Bar through hole diameter	Front push Ф32, rear pull Ф36	mm
X/Z Axis Movement	X-axis stroke	800	mm
	Z-axis stroke	300	mm
	X/Z axis Fast Mobility Rate	30	m/min
Machine precision	X/Z axis repeat precision	±0.003	mm
Machine precision	X/Z axis positioning accuracy	±0.005	mm

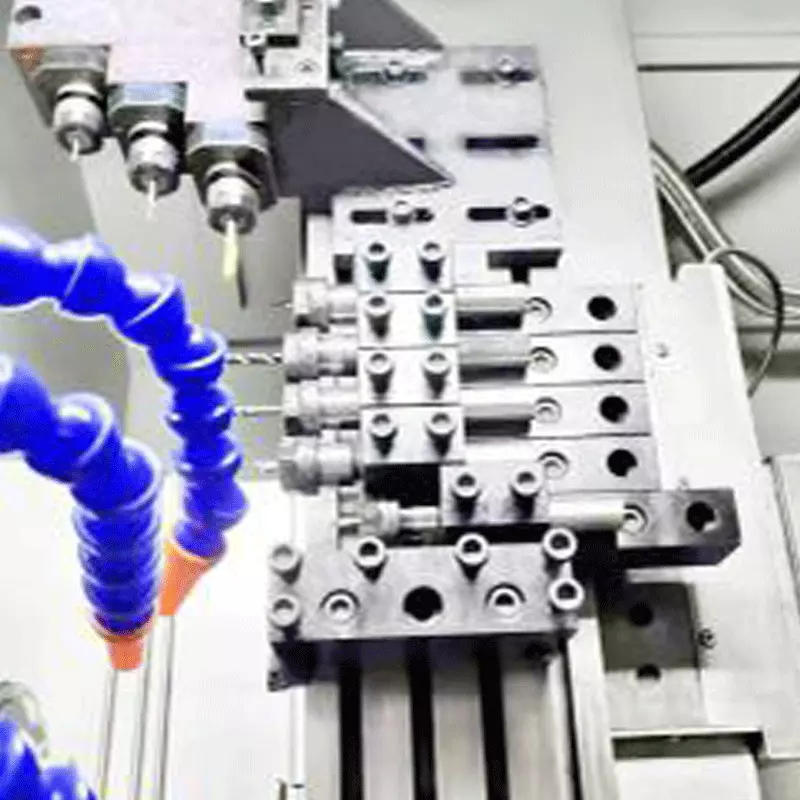

Knife holder	Knife tower drive	Tooling	set
	Number of cutters	7	Support
	Tool holder speciDcation	20*20	mm
	Speci0cation of Boring Tool Base	Ф20	mm
Spindle	Spindle nose form	A2-4	/
Spindle	Diameter of spindle through hole	Ф45	mm
Control system	Controller	New Era	Set
	Spindle motor power	5.5	kw
	Spindle speed	5000	rpm
	X-axis servo motor power	0.85	kw
	Z-axis servo motor power	0.85	kw
Size	Lengthwidth height	187012401718	mm
