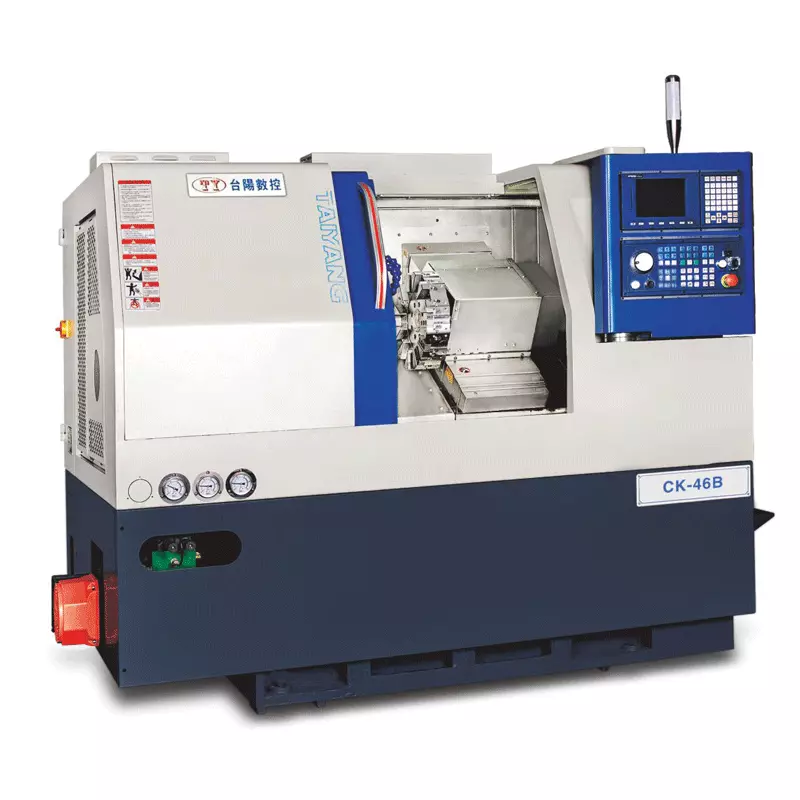

Knife tower machine CK-46B

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

1.Overall casting design, small footprint and space saving;

2. The control box is designed as a rotating swing arm, which is easy tooperate;

3.Pneumatic clamping of the spindle, faster opening and closing;

4. The main shaft is designed without oil cylinder, and the speed canreach 7000r.p.m;

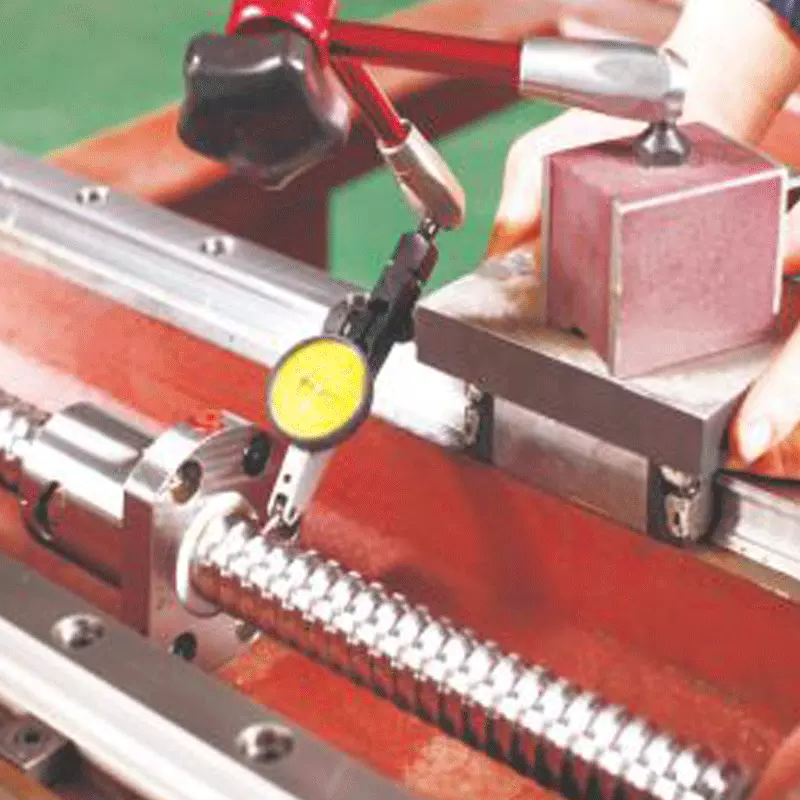

5.Adopt grinding-grade large-pitch screw, fast running speed andstrong rigidity;

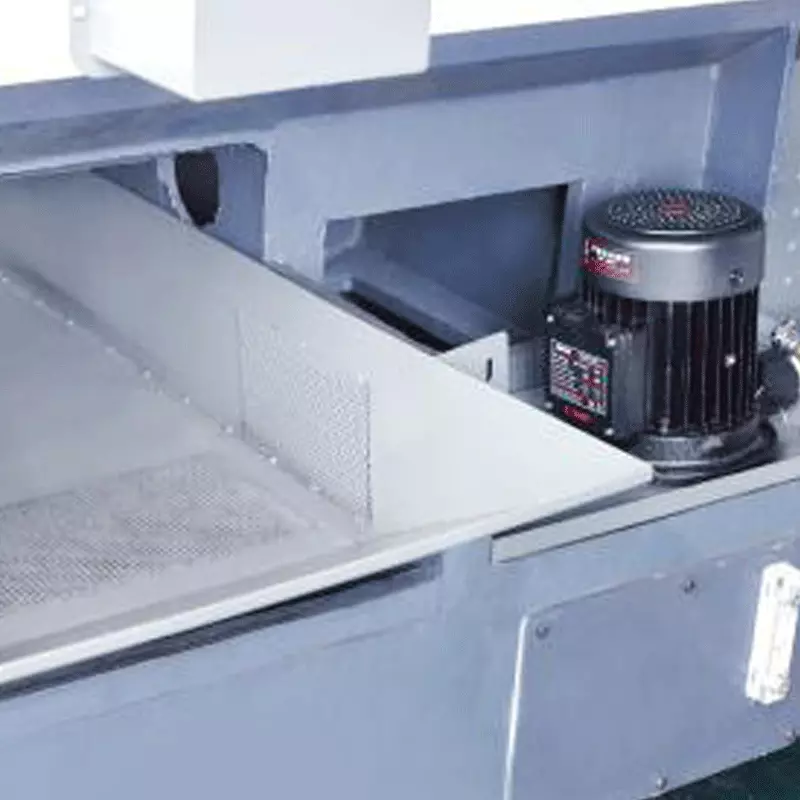

6.High-power cooling water pump, sufficient cooling, longer tool life;

Previous: No More

Next: No More

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Knife arrangement machine

Turning and milling compound machine

Knife tower machine

Dual spindle and dual blade tower turning and milling composite machine

Knifetower tail top machine

Automtic lathe

Main accessories of automatic lathe

Latest News

Advantages of Turning and Milling Composite Machines in the Processing of Complex Parts

Applications of High-Precision CNC Lathes in the Aerospace Industry

How to optimize the production efficiency and processing accuracy of automatic lathes

How turning and milling composite machines adapt to small-batch, multi-variety production demands

Breakthroughs and applications of high-precision CNC lathes in micro-nano processing

Contact Us

Phone:

+86 13537157072

E-mail:

sunny@yuyangmachine.com

Whatsapp:

+86 15814115868

Address:

No.4, Lane 1, Hebin Road, Yongkou, Houjie Town,Dongguan City, Guangdong Province

Website:

ltem	Standard configuration/Optional configuration
System	Taiwan Neway
Drive	Japan Yaskawa/Taiwan Neway
Spindle	Taiwan Pusen/Jiantong
Screw rod	Taiwan Yintai/Shangyin
Guide/ sliding block	Taiwan Yintai/Shangyin
Bearing	Japan NSK/NACHI
Electical appliance	France Schneider
Spindle motor	Super synchronous
Dota	Servo tool turret

ltem	CK-46B		Unit
Special cases	Name	Specifications
Machining range	Machine tool body Rotation diameter	Ф420	mm
	Workpiece length	210	mm
	Machining diameter (discs)	Ф300	mm
	Machining Diameter (Shaft)	Ф46	mm
	Bar through hole diameter	Front push Ф42 Rear pull Ф46	mm
X/Z Axis Movement	X-axis stroke	190	mm
	Z-axis stroke	400	mm
	X/Z -axis Fast Mobility Rate	28	m/min
Machine precision	X/Z axis repeat precision	±0.002	mm
Machine precision	X/Z axis positioning accuracy	±0.005	mm

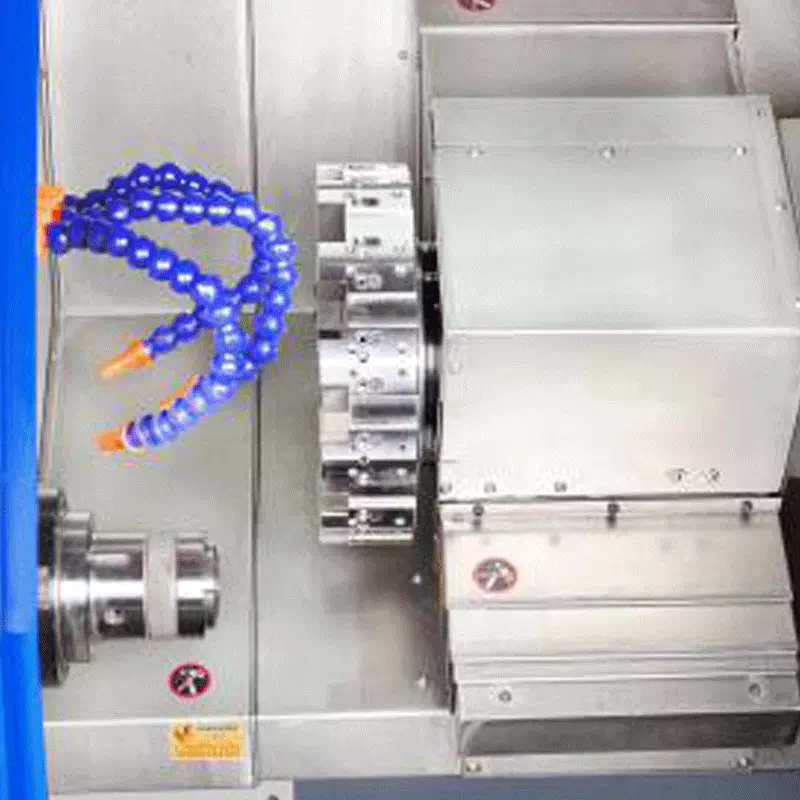

Knife holder	Knife tower drive	Servo motor	set
	Number of cutters	12 Workstation	support
	Tool holder speciDcation	25*25	mm
	Speci0cation of Boring Tool Base	Ф32	mm
Spindle	Spindle nose form	A2-5	/
Spindle	Diameter of spindle through hole	Ф56	mm
Control system	Controller	Neway	Set
	Spindle motor power	7.5	kw
	Spindle speed	5000	rpm
	X-axis servomotor power	1.3	kw
	Z-axis servo motor power	1.3	kw
	Top set maximum stroke	350	mm
Size	Lengthwidth height	229016701675	mm
