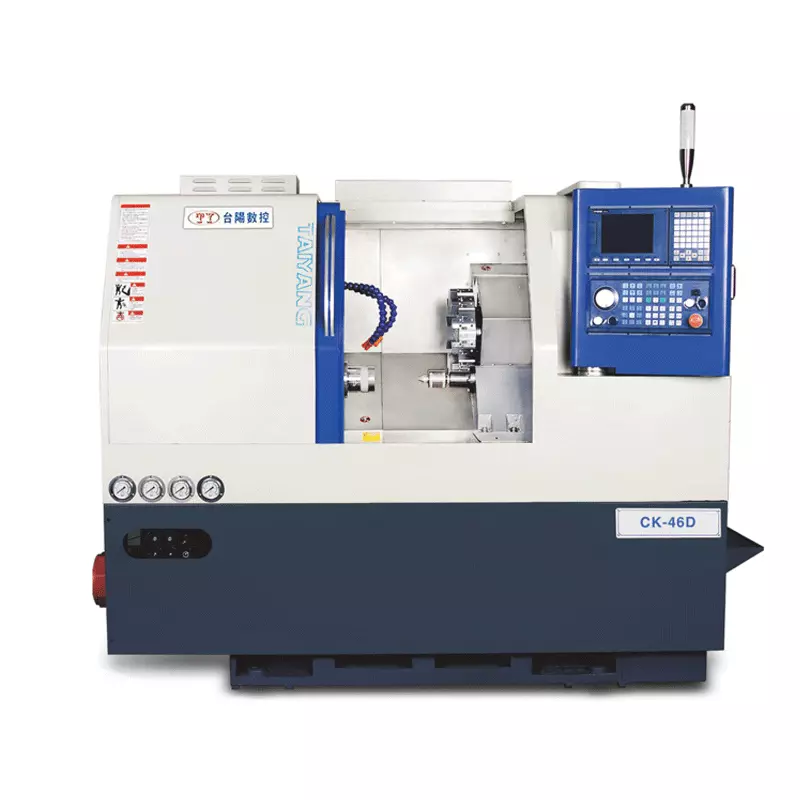

Knifetower tail top machine CK-46D

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

1.One-piece casting process,Z sliding seat adopts 30-degree triangledesign, good stability, easy chip removal, large space, and stronger rigidity;

2. The newly designed double-layer structure bed increases the weight andstrengthens the high rigidity;

3. Roller guides are used for all guide rails, which enhances the sliding area,thereby further improving rigidity and shock absorption, realizing strongcutting and improving the service life of the tool;

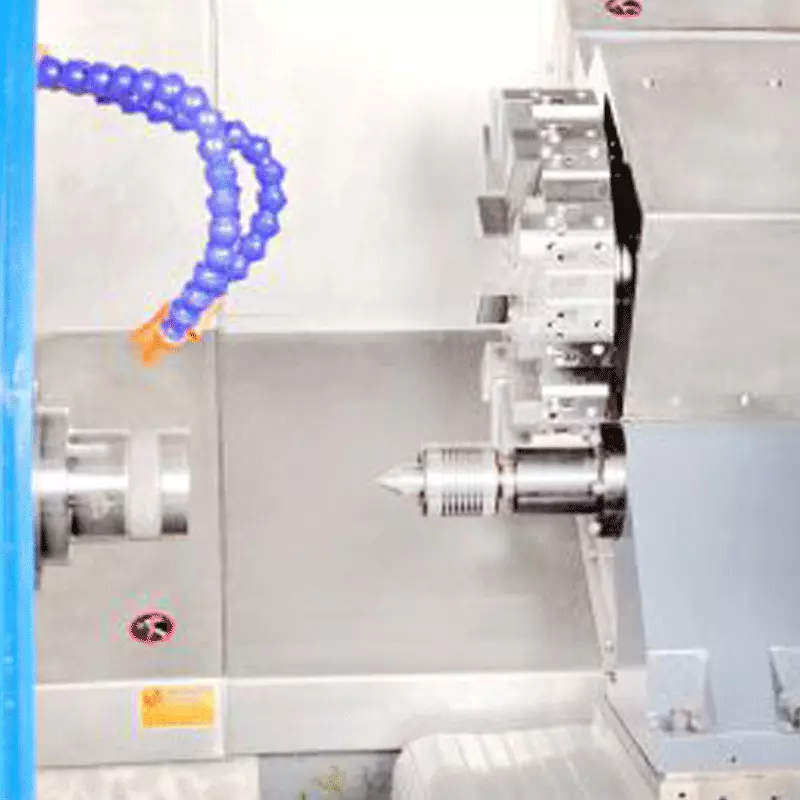

4. The tailstock adopts ball screw, which has good rigidity and has obviousadvantages for long processing and large workpiece products;

Previous: No More

Next: No More

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Knife arrangement machine

Turning and milling compound machine

Knife tower machine

Dual spindle and dual blade tower turning and milling composite machine

Knifetower tail top machine

Automtic lathe

Main accessories of automatic lathe

Latest News

Advantages of Turning and Milling Composite Machines in the Processing of Complex Parts

Applications of High-Precision CNC Lathes in the Aerospace Industry

How to optimize the production efficiency and processing accuracy of automatic lathes

How turning and milling composite machines adapt to small-batch, multi-variety production demands

Breakthroughs and applications of high-precision CNC lathes in micro-nano processing

Contact Us

Phone:

+86 13537157072

E-mail:

sunny@yuyangmachine.com

Whatsapp:

+86 15814115868

Address:

No.4, Lane 1, Hebin Road, Yongkou, Houjie Town,Dongguan City, Guangdong Province

Website:

ltem	Standard configuration/Optional configuration
System	Taiwan New Era
Drive	Japan Yaskawa/Taiwan New Era
Spindle	Taiwan Pusen/Jiantong
Screw rod	Taiwan Yintai/Shangyin
Guide/ sliding block	Taiwan Yintai/Shangyin
Bearing	Japan NSK/NACHI
Electical appliance	France Schneider
Spindle motor	Super synchronous
Dota	Servo turret

ltem	CK-46D		Unit
Special cases	Name	Specifications
Machining range	Machine tool body Rotation diameter	Ф420	mm
	Workpiece length	300	mm
	Machining diameter (discs)	Ф46	mm
	Machining Diameter (Shaft)	380	mm
X/Z Axis Movement	X-axis stroke	400	mm
	Z-axis stroke	30	mm
	XZAxis Fast Mobility Rate	28	m/min
Machine precision	X/Z axis repeat precision	±0.002	mm
Machine precision	X/Z axis positioning accuracy	±0.005	mm
Knife holder	Knife tower drive	Servo motor	SET
	Number of cutters	12 Workstation	Support
	Tool holder speciDcation	25*25	mm
	Speci0cation of Boring Tool Base	Ф32	mm
Spindle	Spindle nose form	A2-4	/
Spindle	Diameter of spindle through hole	Ф56	mm
Control system	Controller	New Era	Set
	Spindle motor power	7.5	kw
	Spindle speed	5000	rpm
	X-axis servomotor power	1.3	KW
	Z-axis servo motor power	1.3	KW
	Top set maximum stroke	350	mm
	Top sleee Taper	MT4	/
Size	Lengthwidth height	228014501800	mm
