CK-46C/S

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

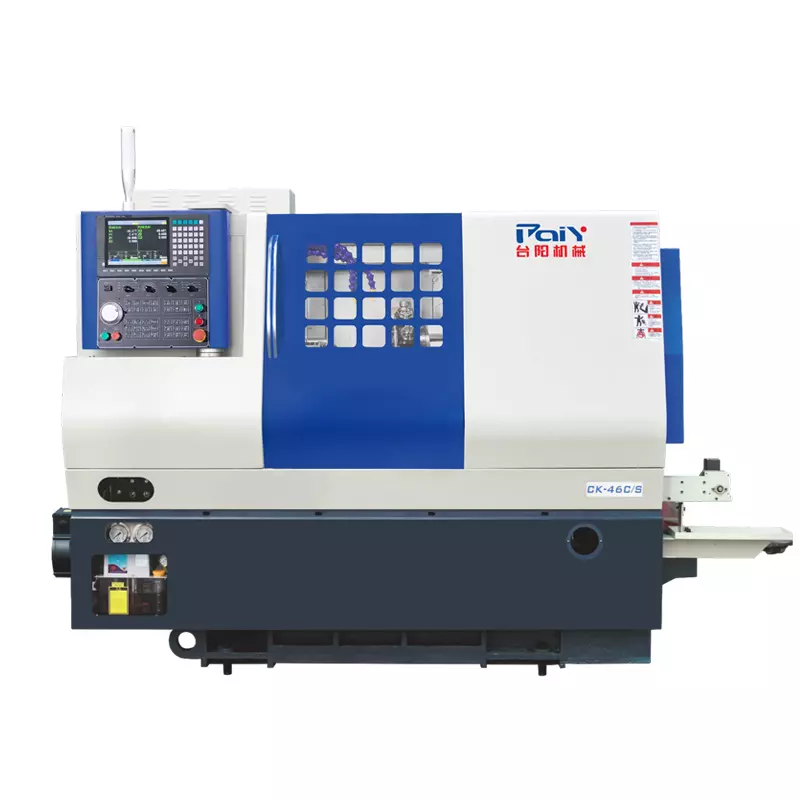

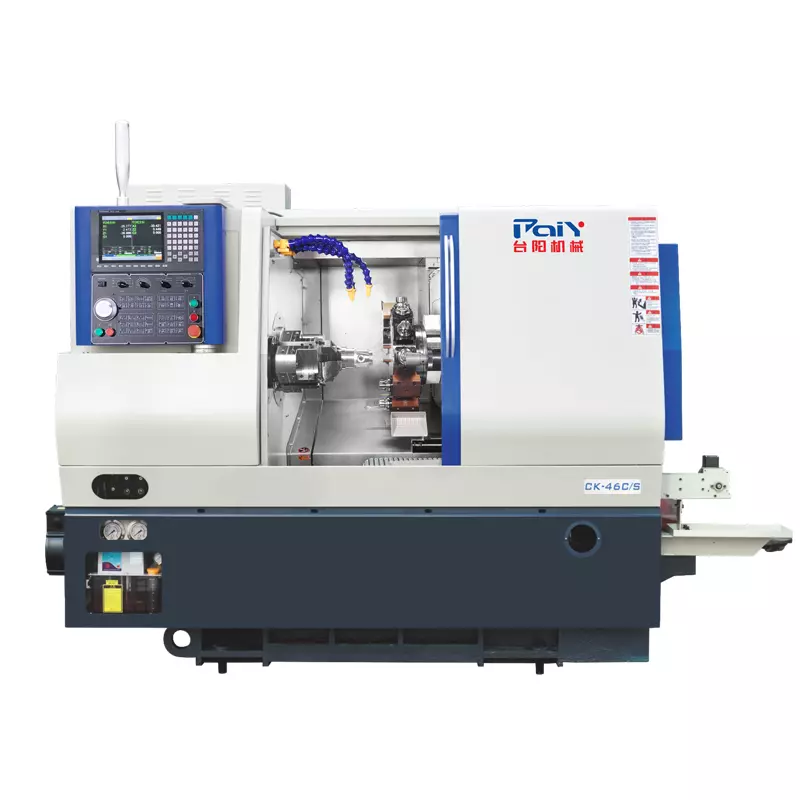

The CK-46C/S features an innovative "twin-spindle, twin-turret, single Y-axis"layout, ensuring high-efficiency combined machining capabilities whileachieving superior rigidity, stability, and cost control.

Efficient Twin-Spindle Synchronization:Enables complete machining of both front and back sides of the workpiece ina single setup, significantly improving precision and efficiency.

Upper Turret with Y-Axis:Equipped with Y-axis functionality for precision milling tasks such as off-centermilling and face miling, expanding machining versatility.

Rigid Secondary Turret:Dedicated to machining the back side of the workpiece, including turningdrilling, and tapping, ensuring clear task division and enhanced efficiency.

Intelligent Sub-Spindle:Standard features include a parts catcher, spindle ejection, and air blast forchip removal, ensuring smooth and efficient automated production.

Previous: No More

Next: TY-07Ⅳ

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Knife arrangement machine

Turning and milling compound machine

Knife tower machine

Dual spindle and dual blade tower turning and milling composite machine

Knifetower tail top machine

Automtic lathe

Main accessories of automatic lathe

NCN swiss-type lathe

Latest News

Advantages of Turning and Milling Composite Machines in the Processing of Complex Parts

Applications of High-Precision CNC Lathes in the Aerospace Industry

How to optimize the production efficiency and processing accuracy of automatic lathes

How turning and milling composite machines adapt to small-batch, multi-variety production demands

Breakthroughs and applications of high-precision CNC lathes in micro-nano processing

Contact Us

Phone:

+86 13537157072

E-mail:

sunny@yuyangmachine.com

Whatsapp:

+86 15814115868

Address:

No.4, Lane 1, Hebin Road, Yongkou, Houjie Town,Dongguan City, Guangdong Province

Website:

Item	Standard configuration /Optional confiquration
SystemDriver	Xinda 22TB
Principal axis	Taiwan Jianchun
Screwrod,&uiderail,slider	Taiwan HIWIN
Bearing	Japan NSK
An electric appliance	France Schneider
Spindle motor	Xinda
Knlfe tower	Servo Tool Tower (Fengyi Tool Tower)

ltem	CK-46C/S		Unit
special cases	Name	(Specifications)
First spindle Processingrange	Rod through-hole diameter	Front pushø42/Rear pullø46	mm
First spindle Processingrange	Processingworkpiece length	300	mm
Second spindle Processingrange	Rod through-hole diameter	Front pushø30/Rear pull35	mm
Second spindle Processingrange	Processingworkpiece length	155	mm
X/Y/Z Axis Movement	Z1 axis travel	315	mmmm
	X1 axis travel	165	mm
	Travel Y-axis	40	mm
	Z2 axis travel	335	mm
	X2 axis travel	155	m/min
	Z1/X1/Y/Z2/X2 axis rapid movement rate	25	mm
Machine precision	Z1/X1/Y/Z2/X2 axis repeatability accuracy	±0.003	mm
Machine precision	Z1/X1/Y/Z2/X2 axis positioning accuracy	±0.005	mm
Cutterbed	Main Knife Tower	12-station BMT45 servo-driven tool turret	/
	Main knife tower handle specifications	Square 25x25/Round 632/Power head BMT45	/
	Deputy Knife Tower	6-station servo tool turret	mm
	Specification ofsecondary turret handle	Square 20x20/Round ø25	mm
Spindle	Main spindle nose type	A2-5/Spindle Through Hole 056	/
Spindle	Secondary spindle nose type	A2-4/Spindle bore 246	/
Control system	controller	Xinda 22TB system	Set
	Spindle motor power	9.5	rpm
	Auxiliary spindle motor power	3.7	kw
	Spindle speed	5000	rpm
	X1-axis servomotor power	1.7	kw
	Z1-axis travelotor power	1.7	kw
	Y-axis servo motor power	2.4	kw
	X2-axis servomotor power	1.1	kw
	Z2-axis servomotor power	1.7	kw
	Power head servo motor power	2.6	kw
Size	LWH	L 2300 * W 1660 * H 1830	mm
