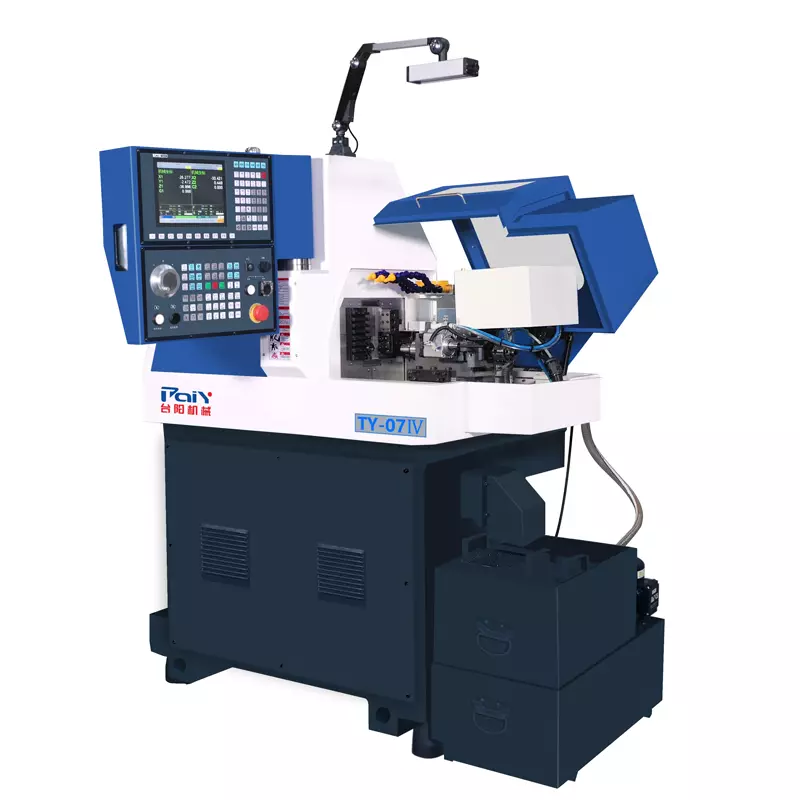

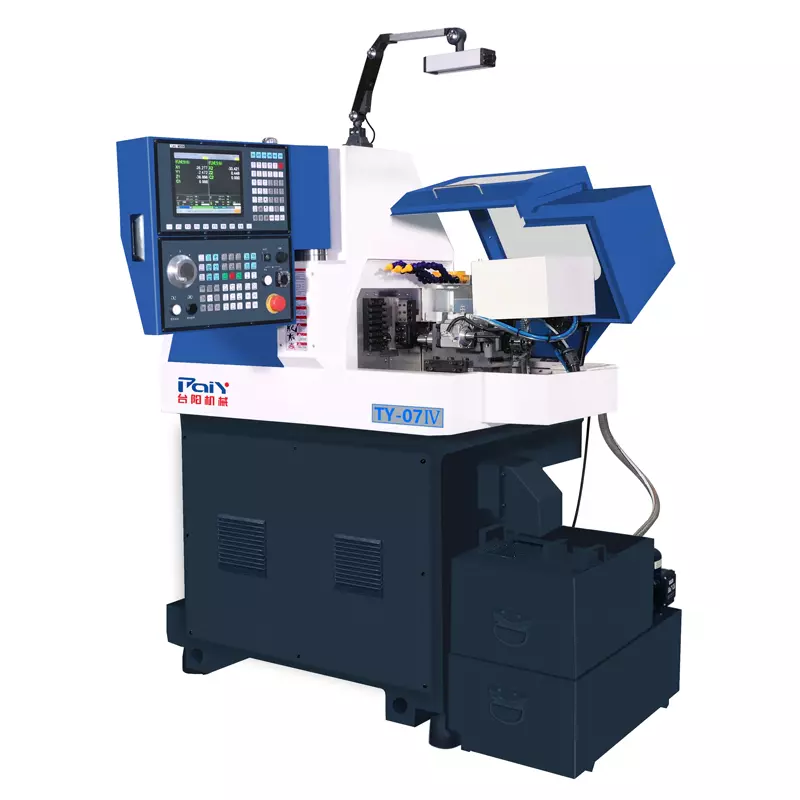

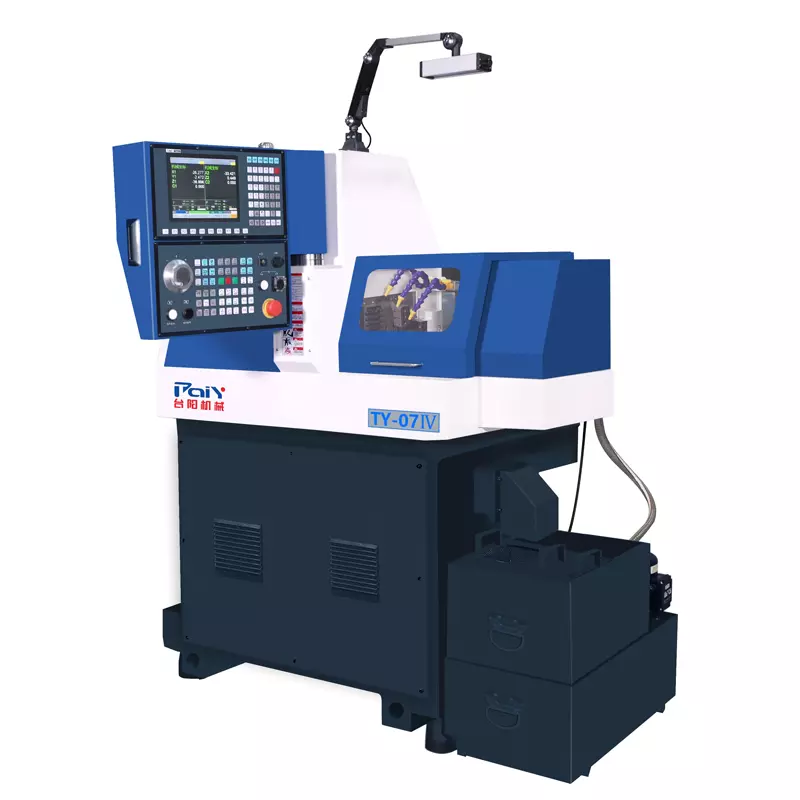

TY-07Ⅳ
Brand: Taiyang
MOQ: 10 Pieces
Delivery time: 7 Day
The machine base adopts an integrated, symmetrical cast design with a 3-pointsupport structure, which better controls thermal deformation of the bed and ensureshigher precision for slender workpieces.

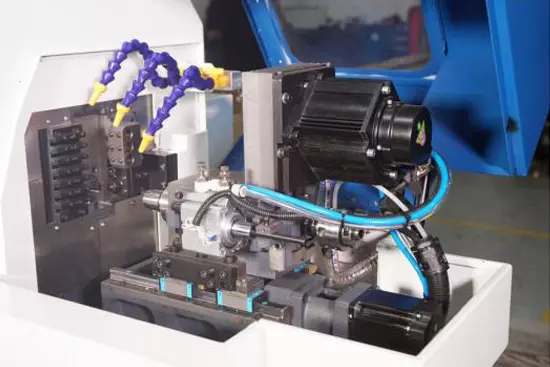

The guide bushing seat features a lightweight design, allowing for easier and quickeradjustments and replacements. The guide bushing chuck can be adjusted forwardand backward, making it more suitable for turning and miling slender parts.
The spindle utiizes Taiyang's self-developed front-push clamping spindle. Both thespindle chuck and guide bushing chuck use standardized market-availablecomponents, resulting in lower costs,stronger compatibiity, and a shortenedproduct debugging cycle.

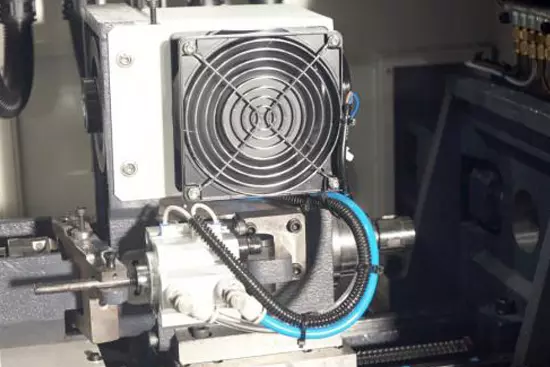

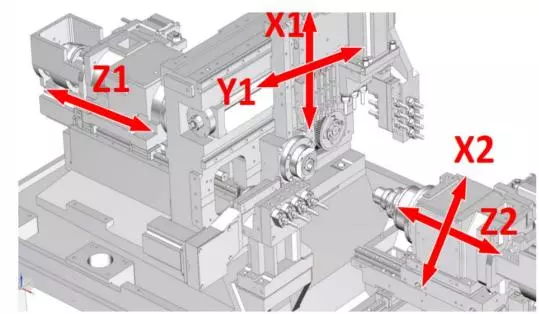

Compared with standard models, this machine is equipped with an additional sub-spindle. The sub-spindle features a modular design that offers easy operation andmaintenance, strong compatibility, and a compact footprint.
Product Details

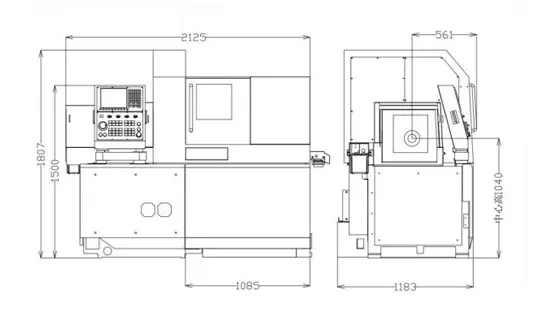

TY-20Ⅳ Dimension Drawing
TY-20Ⅳ Feature Data Sheet
| Model | TY-07Ⅳ | Tool Dimensions&Quantity | Square Blade 8mm x 8mm | 7 tools |
| Max. Machining Diameter (D) | ø7mm | er11 Drill Holder with Er11 Collet Chuck | 3 tools | |
| Max. Machining Length (L) | 135mm | Rotary Tool (ER11) | 2 tools | |
| Max. Drilling Diameter (Front) | 27mm | Rapid Traverse Rate | X/ Axes | 20m/min |
| Max. Tapping Diameter (Front) | ø4mm | Z Axis | ||
| Spindle Rotation Speed | MAX.8000min-1 | A2 Axis | - | |
| Side Turret Rotary Tool Drilling Diameter | 24mm | Motor | For Main Spindle Drive | 1.3KW |
| Side Turret Rotary Tool Tapping Diameter | M2 | For X//Z Feed Axes | 0.75kw | |
| Turret Rotary Tool Spindle Rotation Speed | MAX.6000min-1 | For Sub-spindle Drive | - | |
| Max. Holding Diameter (Sub-spindle) | - | For Z2 Feed Axis | - | |
| Max. Workpiece Extension (Sub-spindle) | - | For X2/Z3 Feed Axes | - | |
| Max. Drilling Diameter (Back Side) | - | For Rotary Tool Drive | 0.1KW | |
| Max. Tapping Diameter (Sub-spindle) | - | For Cutting Oi Pump | 0.35KW | |
| Sub-spindle Rotation Speed | - | Center Height | 980mm | |
