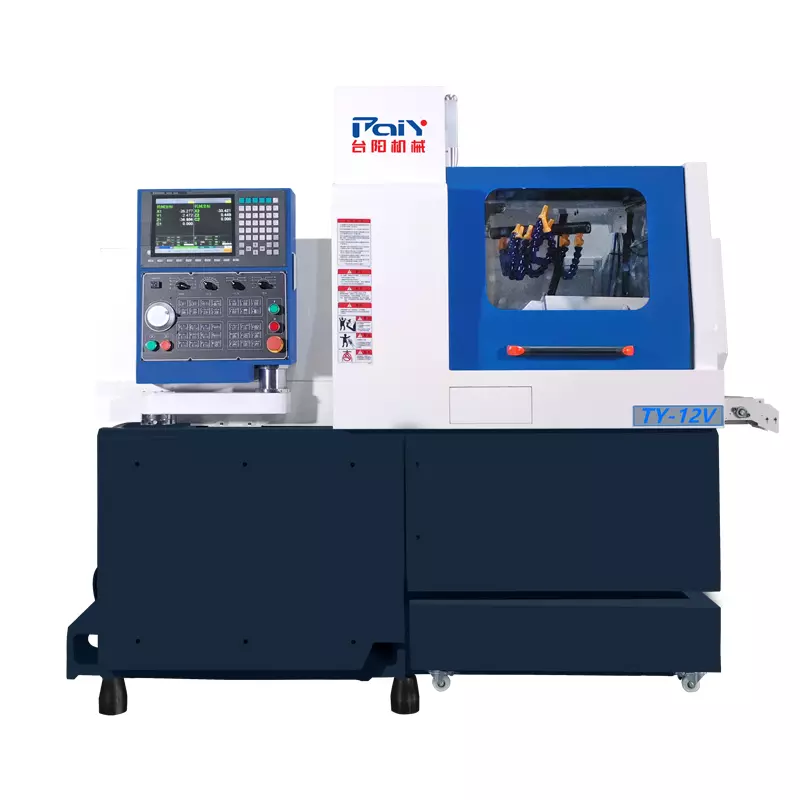

TY-12V
Brand: Taiyang
MOQ: 10 Pieces
Delivery time: 7 Day
High Machining Accuracy: Equipped with high-precision components such as ballscrews, guide rails, and bearings, along with a rotating guide bushing, it effectivelyensures workpiece stability during machining, maintaining higher coaxiality andsurface finish. Suitable for processing various long shaft components.

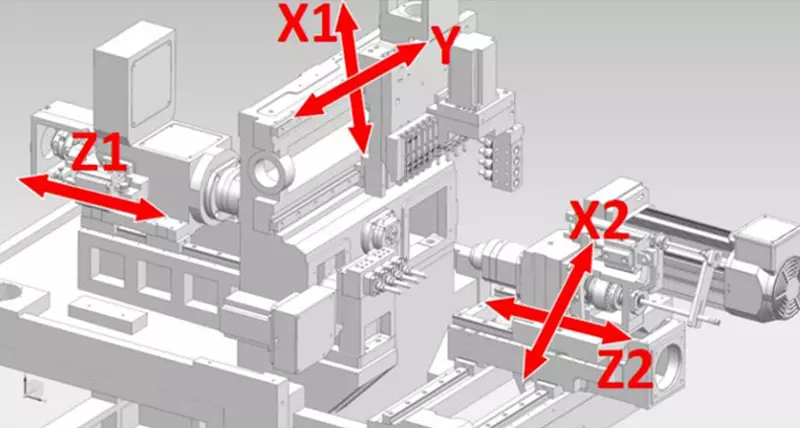

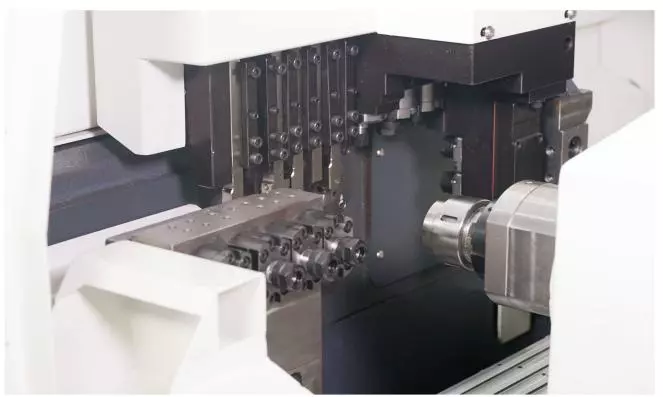

High Machining Efficiency: The machine incorporates a dual-spindle and dual-channel system design, enabling both synchronous and sequential machiningoperations on the front and rear spindles. it is also equipped with multiple toolturrets featuring overlapping operation capabilities, significantly reducingmachining cycle time. With high rapid traverse rates in the X//Z axes, non-cuttingtime can be effectively minimized.
Wide Machining Range: Typically supports bar materials up to 12mm in diameter,with a machining length of over 165mm in a single clamping. Capable of performingvarious operations such as turning, milling, drilling, boring, tapping.
Product Details

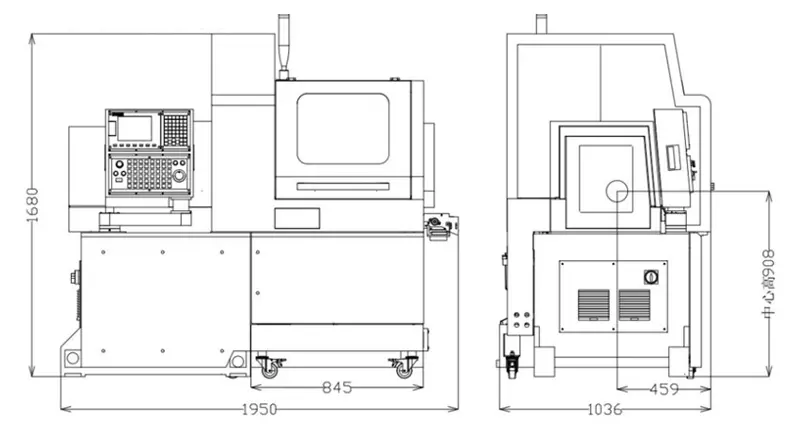

TY-12V Dimension Drawing
TY-12V Functional Data Sheet
| Model | TY-12 V | Tool Dimensions | Square Tool Holder | 10*10 |
| Max. Machining Diameter (D) | ø12mm | Drill Holder with Collet Chuck | 套筒20mmSleeve | |
| Max. Machining Length (L) | 165mm | Rotary Tool | ERO8、ER11 | |
| Max. Drilling Diameter (Front) | ø8mm | Rapid Traverse Rate | All Axes (except X1 axis) | 30m/min |
| Max. Tapping Diameter (Front) | M6 | Motor | For Main Spindle Drive | 2.5kw |
| Spindle Through-Hole Diameter | ø20mm | X、Y、Z1、Z2、X2 | 1.2kw | |
| Spindle Rotation Speed | MAX、6500min-1 | For Sub-Spindle Drive | 2.5kw | |
| Turret Rotary Tool Drilling Diameter | 25mm | For Tool Rotation Drive | 1.0kw | |
| Turret Rotary Tool Tapping Diameter | M4 | For Cutting Oil Pump | 0.75kw | |
| Turret Rotary Tool Spindle Rotation Speed | MAX、6000min-1 | Center Height | 910mm | |
| Max. Holding Diameter (Sub-spindle) | ø12mm | Compatible System | Standard with Syntec | |
| Max. Workpiece Extension (Sub-spindle) | 30mm | Cutting Oil Tank Capacity | 130L | |
| Max. Drilling Diameter (Back Side) | ø5mm | Ball Screw | HIWIN | |
| Max. Tapping Diameter (Sub-spindle) | M4 | Guideways and Sliding Blocks | HIWIN | |
| Sub-spindle Rotation Speed | MAX、6500min-1 | |||
| Number of Tool Stations |
18/20 |
|||
