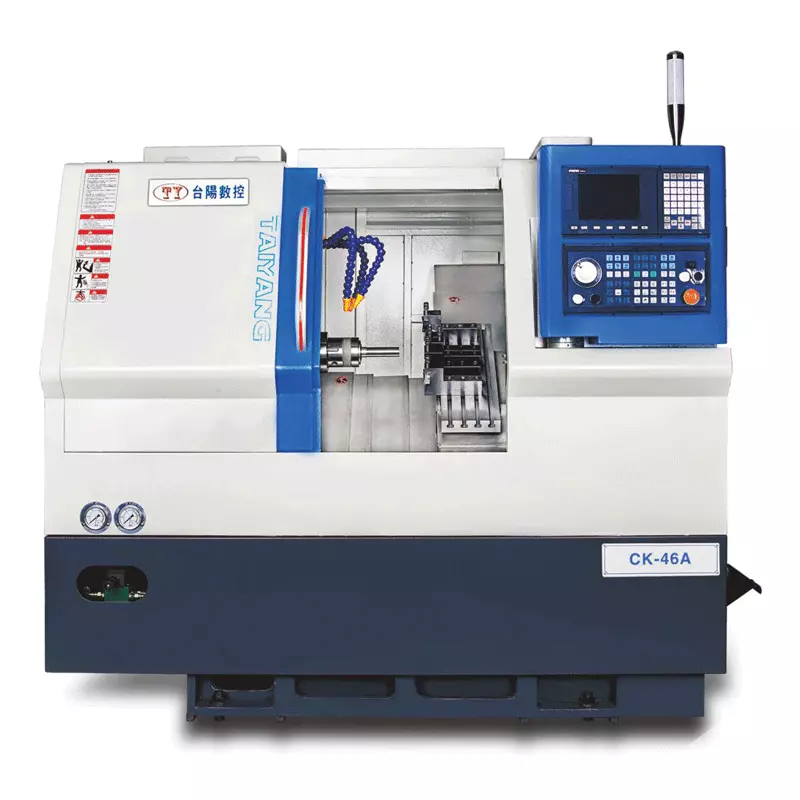

Knife arrangement machine CK-46A

Brand: Taiyang

MOQ: 10 Pieces

Delivery time: 7 Day

1.The overall casting process,30-degree inclined bed design, easyoperation and smooth chip removal;

2. The bed has a double-layer structure, which has strong shock resistanceand can ensure stable accuracy for a long time;

3. The built-in design of the water tank has a large water storage capacity.and it is convenient and simple to install a high-pressure pump;

4.Adopt large-diameter c3-grade ball screw, double pre-pulling designsmall change of hot and cold machine;

Previous: Knife arrangement machine CK-36A

Next: Knife arrangement machine CK-52A

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Knife arrangement machine

Turning and milling compound machine

Knife tower machine

Dual spindle and dual blade tower turning and milling composite machine

Knifetower tail top machine

Automtic lathe

Main accessories of automatic lathe

Latest News

Advantages of Turning and Milling Composite Machines in the Processing of Complex Parts

Applications of High-Precision CNC Lathes in the Aerospace Industry

How to optimize the production efficiency and processing accuracy of automatic lathes

How turning and milling composite machines adapt to small-batch, multi-variety production demands

Breakthroughs and applications of high-precision CNC lathes in micro-nano processing

Contact Us

Phone:

+86 13537157072

E-mail:

sunny@yuyangmachine.com

Whatsapp:

+86 15814115868

Address:

No.4, Lane 1, Hebin Road, Yongkou, Houjie Town,Dongguan City, Guangdong Province

Website:

ltem	Standard configuration/Optional configuration
System	Taiwan New Era
Drive	Japan Yaskawa/Taiwan New Era
Spindle	Taiwan Pusen/Jiantong
Screw rod	Taiwan Yintai/Shangyin
Guide/ sliding block	Taiwan Yintai/Shangyin
Bearing	Japan NSK/NACHI
Electical appliance	France Schneider
Spindle motor	Super synchronous

ltem	CK-46A		Unit
Special cases	Name	Specifications
Machining range	Machine tool body Rotation diameter	Ф500	mm
	Workpiece length	300	mm
	Machining diameter (discs)	Ф400	mm
	Machining Diameter (Shaft)	Ф46	mm
	Bar through hole diameter	Front push Ф42 rear pull Ф46	mm
X/Z Axis Movement	X-axis stroke	800	mm
	Z-axis stroke	300	mm
	X/Z Axis Fast Mobility Rate	30	m/min

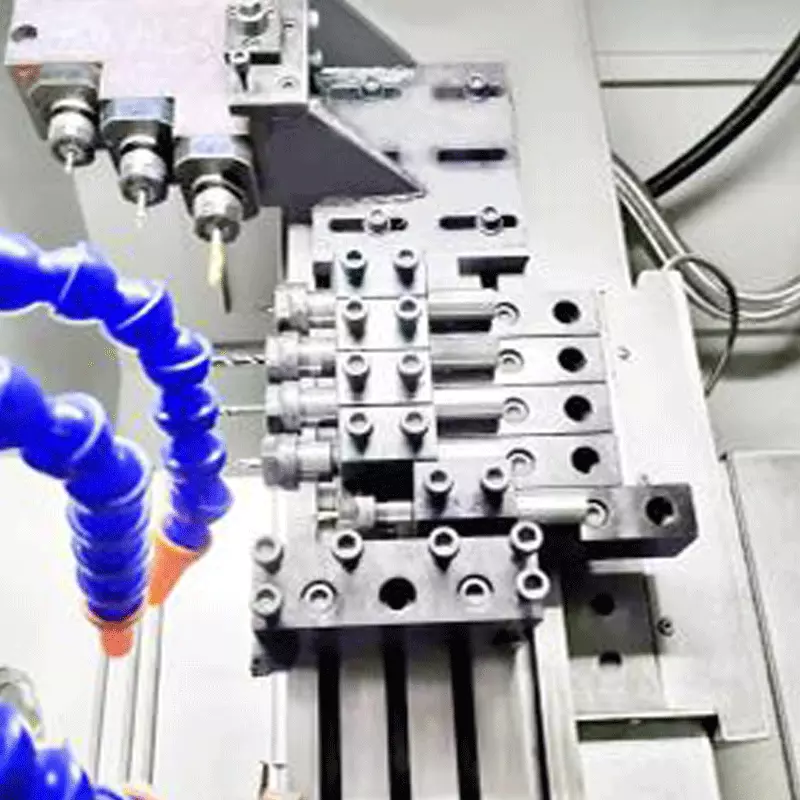

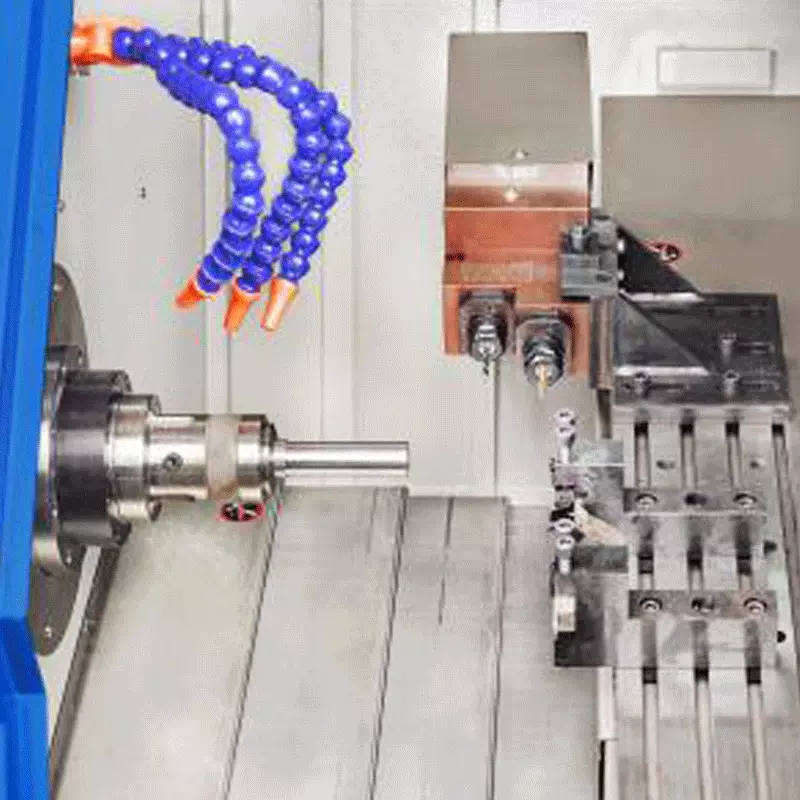

Knife holder	Knife tower drive	Tooling	set
	Number of cutters	7	Support
	Tool holder speciDcation	20*20	mm
	Speci0cation of Boring Tool Base	Ф20	mm
Spindle	Spindle nose form	A2-5	/
Spindle	Diameter of spindle through hole	Ф62	mm
Control system	Controller	New Era	Set
	Spindle motor power	7.5	kw
	Spindle speed	5000	rpm
	X-axis servomotor power	0.85	KW
	Z-axis servo motor power	0.85	KW
Size	Lengthwidth height	234016701810	mm
